Miller Millermatic 141 MIG Welder With Cart 951601

Miller Millermatic 141 MIG Welder With Cart 951601

by Miller $939.00


Millermatic® 141 MIG Welder with Auto-Set, Running Gear/Cylinder Rack 951601

The Millermatic® 141 MIG welder with running gear and cylinder rack is a 140 amp portable MIG welder that runs on standard 120 volt household current. The 141 features Auto-Set, which eliminates the guesswork of setting voltage and wire feed speed for your MIG welding application. Simply select the material thickness and wire diameter while the welder is in the Auto-Set mode, and you are ready to weld. The Auto-Set control automatically sets your welder to the proper parameters. It is available when welding mild steel with solid wire and only works with .024 and .030 solid wires and C25 shielding gas (75% Argon, 25% CO2).

Manual MIG welding control is also available for those welders who wish to fine tune their welding arc. Manual welding mode must also be used when MIG welding aluminum, stainless steel or for flux-cored welding. The parameter door chart lists voltage and wire feed speed settings options.

The new Millermatic running gear and cylinder rack is made of heavy duty construction. It has eight inch rubber rear wheels for smooth running over most shop surfaces. It comes complete with front handles, cable holders and plastic consumables storage box. The cylinder rack will hold a single gas cylinder up to 7 inches in diameter and 65 pounds in weight.



Processes
  • MIG (GMAW)
  • Flux Cored (FCAW) (gas and self-shielded)

    Applications
  • Light Industrial Applications
  • Light Fabrication
  • Maintenance and Repair
  • Auto Body
  • Farm/Home



    Features:
  • Auto-Set™ automatically provides the right settings to weld mild steel while infinite voltage control allows the flexibility to manually set your own parameters.
    Set the wire diameter, a blue light shows Auto-Set is activated
    Dial in the thickness of what you are welding
    Start welding with the exact parameters you need!
  • Angled cast-aluminum drive system with calibrated tension knob creates consistent feeding and easy setup for up to 15-foot MIG guns.
  • Quick Select™ drive roll makes setup quicker by offering three grooves, two for different size solid wire and a third for flux-cored welding wire.
  • Auto Spoolgun Detect™ automatically detects when a MIG gun or spool gun is connected eliminating the need for a switch.
  • Smooth-Start™ provides a smooth, spatter-free start. It is the best-starting machine in the small MIG machine category.
  • Thermal overload protection shuts down unit and activates the over temperature light if airflow is blocked or duty cycle is exceeded. Automatically resets when unit cools.
  • Uses 4 inch or 8 inch (102 or 203 mm) spools and can be set up to weld with .024 to .030 inch (0.6 to 0.8 mm) solid wire and .030 to .035 inch (0.8 to 0.9 mm) flux-cored wire.

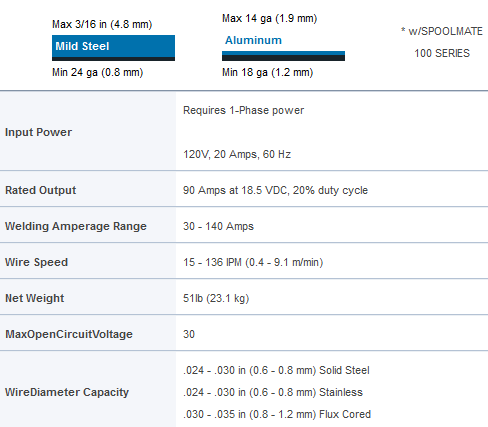

    Specs



    Comes complete with:
  • Millermatic® 141 MIG Welding Power source
  • 6.5-ft. (2 m) power cord with plug
  • 10-ft. (3 m), M-100 MIG gun and cable assembly
  • 10-ft. (3 m) work cable with clamp
  • Argon - Argon/CO2 mix flow gauge regulator with gas hose
  • Hobart® spool of .030-in. (0.8 mm) solid wire
  • Two contact tips for .030-in. (0.8 mm) wire
  • Quick Select® drive rolls for .024-in. (0.6 mm) or .030/.035-in. (0.8/0.9 mm) solid wire, and .030/.035-in. (0.8/0.9 mm) flux-cored wire
  • Material thickness gauge #229 895
  • Velcro cord wraps
  • Running gear/cylnder rack #301239
